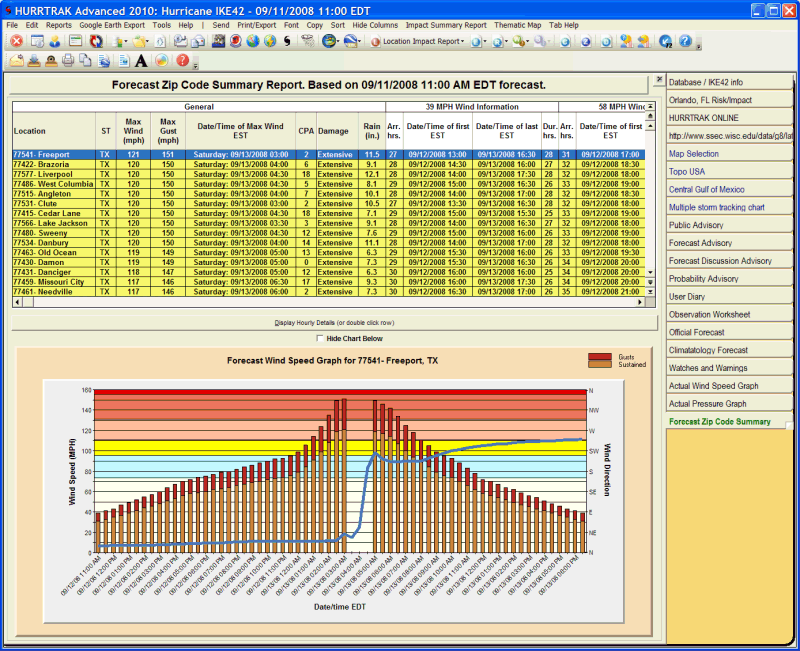

Description:  This tab displays the forecast or actual impact summary report for the zip codes specified in Impact Analysis Option.This report is generated by examining every zip code and determining the wind impact to that area.  The report shows the zip code, city name, state, maximum wind speed expected (sustained / gusts), day/date/time of maximum wind, closest point of approach (CPA) and the arrival time, first time, last time and duration of 34, 50 and 64 knot winds.   See NHC wind radii considerations for more information on the limitations of forecast wind radii.  The zip codes that are examined are determined by the settings in Impact Analysis Options.  If advanced wind estimation (AWE) is on, it will be indicated in the report header. The graph portion shows the wind speed forecast over time along with the tide harmonic and/or the wind direction. The tide/wind secondary plot change be cycled by left clicking on the chart.

Tab Created by: Selecting menu item Reports - Zip Code Wind Profile Analysis(Forecast or Actual)

Tab Close Allowed: Yes

Functions Available:

Menu/Toolbar:

Standard System Menu Functions

Send - Sends the report via Email either as an HTML attachment or imbedded text

Print

Print Preview - Previews the printed output on your screen

Direct to Printer - Prints the output directly to the designated printer

Export to HTML

Export to PDF

Export to Text (Delimited)

Export to EXCEL - Exports the output to Microsoft EXCEL format.

Export to Shape File (point)

Export report data to Google Earth

Export report data to Google Earth with hourly details.

Print/Export "Executive Style Report"

Font - Allows the user to modify the text font properties for this report.

Copy - Copies the contents of the report to the windows clipboard.

Sort -  Allows the user to sort on any column.

Hide Columns - Allows the user to selectively hide certain columns

Impact Summary Report

Display Hourly Details - This is selected by double-clicking on a location (row) or highlighting a row and selecting the "display hourly details" button.

Toolbars: See Appendix Section for more information.

Tips:

- The report rows are color coded based on the maximum wind speed.

- The zip codes that are examined are determined by the settings in Impact Analysis Options.

- Left clicking on the chart will change the secondary plot from wind direction to tide (when applicable).
