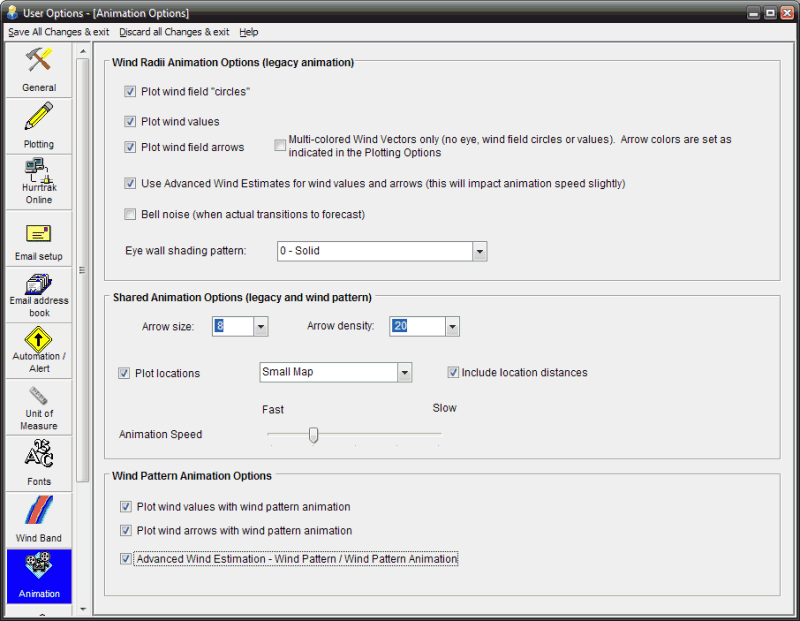

This option determines if Advanced Wind Estimation correction is made to the wind arrows displayed during Wind Pattern creation including animation. For animation this slows down wind pattern animation considerably however it creates valuable output.

This option controls whether the wind field arrows are drawn during wind pattern animation.

This option controls whether the wind values will be displayed during wind pattern animation.

Selecting this option will change the wind arrow display from the standard arrow with wind values to one which has a pattern of multicolored arrows whose size is related to the wind speed at each arrows location.  It is best to increase the arrow density when selecting this option.  Many users also like to de-select the "wind field circles" option.

This option controls how the eye and eye wall will appear during animation. A fill option of transparent will allow for faster animation.

This option determines if Advanced Wind Estimation correction is made to the wind arrows displayed during animation. This does slow down animation somewhat

This option controls whether the wind values will be displayed during animation.

This option controls whether the 64, 50 and 34 knot wind field "circles" are displayed during animation.

This option controls whether a bell noise is sounded at the end of the animation sequence and when the animation changes from actual to forecast positions.

This option controls whether the wind field arrows are drawn during animation.  Selecting this option does have a negative impact on animation performance.

This option controls the size of the wind field arrows and is used for both "normal" and Wind Pattern animation.

This option controls the density of wind arrow plots drawn when the user selects "Display Wind Field".  The higher the number causes a more dense pattern.

This option controls whether locations will be displayed during animation.  If selected the location group to be displayed must be chosen from the list. This option is used for both "normal" and Wind Pattern animation.

This option controls whether locations distances will be displayed during animation.  This option impacts animation speed. This option is used for both "normal" and Wind Pattern animation.

This option controls the speed of animation and is used for both "normal" and Wind Pattern animation..  Select the speed that best suits your processor. Remember, the first loop of animation is not controlled by this option... and is particularly true for wind pattern animation which can take quite a long time.
