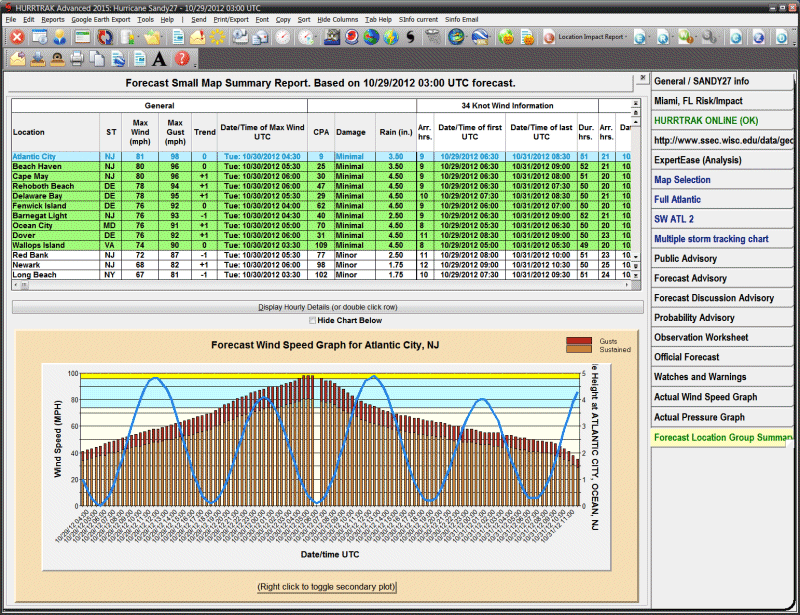

Description:  This tab displays the forecast or actual impact summary report for the specified location group. It is generated by examining every location in the group and determining the forecast wind impact to that location.  The report shows the location name, state, maximum sustained wind speed expected, maximum wind gusts, forecast wind trend, day/date/time of max sustained wind, closest point of approach (CPA), damage estimate, forecast 5 day rainfall, watches and warnings and the arrival time, first time, last time and duration of 34, 50 and 64 knot winds.  See National Hurricane Center wind radii considerations for more information on the limitations of forecast wind radii. Locations that have been analyzed using Advanced Wind Estimation are indicated by their location name in red and in the title of the report as well as including an additional column showing the maximum non-AWE wind. See Advanced Wind Estimation for more information. The graph portion shows the wind speed forecast over time along with the tide harmonic and/or the wind direction. The tide/wind secondary plot change be cycled by left clicking on the chart.

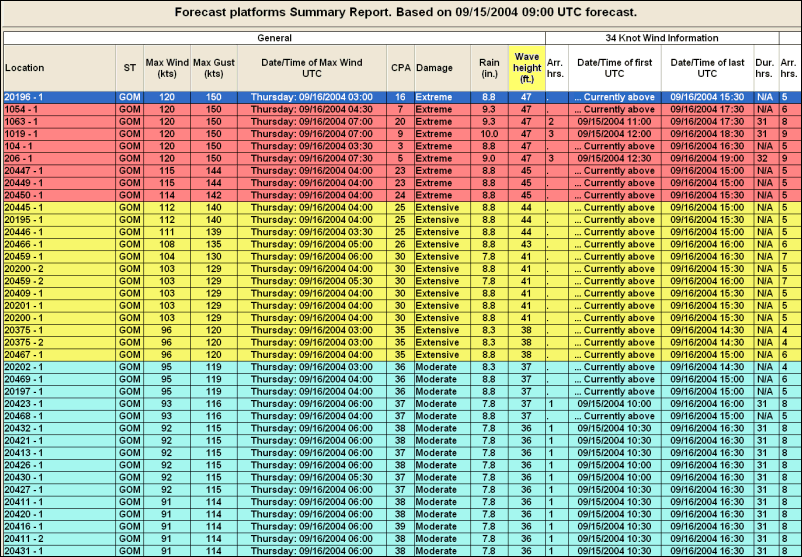

The 2^nd sample image above is included to show an example of a report for a set of oil platforms during Hurricane Ivan. Note for this type of “offshore” location, wave heights are also included on the report.

Tab Created by: Selecting menu item Reports - Location Wind Profile (Forecast or Actual)

Tab Close Allowed: Yes

Functions Available:

Menu/Toolbar:

Standard System Menu Functions

Send - Sends the report via Email either as an HTML attachment or imbedded text

Print

Print Preview - Previews the printed output on your screen

Direct to Printer - Prints the output directly to the designated printer

Export to HTML

Export to PDF

Export to Text (Delimited)

Export to EXCEL - Exports the output to Microsoft EXCEL format.

Export to Shape File (point)

Export report data to Google Earth

Export report data to Google Earth with hourly details.

Print/Export "Executive Style Report"

Export to EXCEL with wind ranges - Exports the report to Microsoft EXCEL format with wind ranges for max sustained and gust (only enabled when AWE option is ON).

Copy - Copies the contents of the report to the windows clipboard.

Font - Allows the user to modify the text font properties for this report.

Sort -  Allows the user to sort on any column.

Hide Columns - Allows the user to selectively hide certain columns

Display Hourly Details - This is selected by double-clicking on a location (row) or highlighting a row and selecting the "display hourly details" button.

Toolbars: See Appendix Section for more information.

Tips:

- The location report rows are color coded based on the maximum wind speed.

- Left clicking on the graph will change the secondary plot from wind to tide data (when appropriate).
