SLOSHView Main Chart Select Display (MOM Mode)

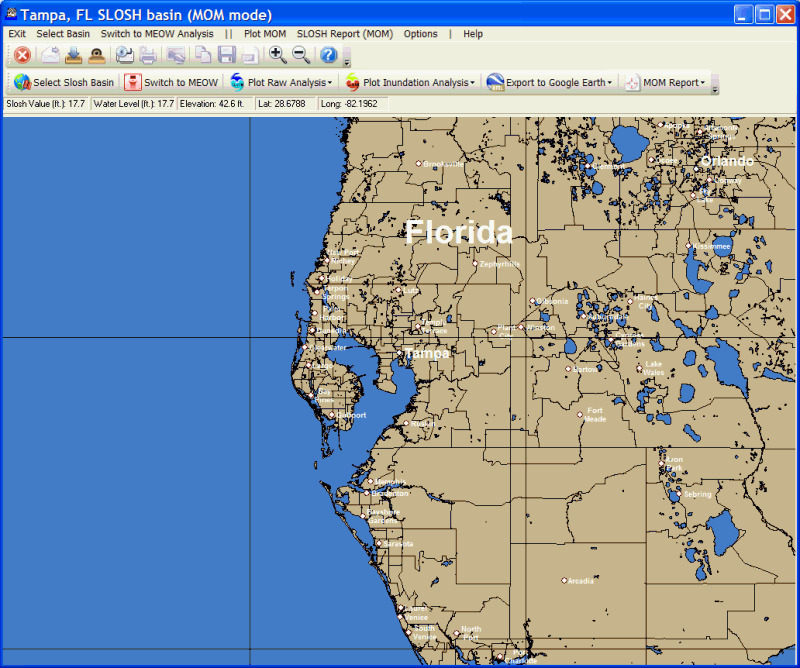

When the system starts or switching to MOM mode (or selecting reset image), the user is presented with a map image.  Use the left mouse button to zoom into the area of interest (use the right button to zoom back out).  When the desired map area is displayed, there are several menu and toolbar options available.  They include:



Exit   Select Basin    Switch to MEOW Analysis    Plot MOM   SloshReport (MOM)  Options   Help



CLICK on any of the above commands to learn more





An additional configuration set of options is available by right mouse clicking any area of the map image before plotting SLOSH.  Click here to learn more.



After plotting SLOSH, you can zoom in by “rubber banding” an area with your mouse (left button) or by selecting zoom in or zoom out. The SLOSH information will re-plot at your new zoom level.



In addition, when plotting a MOM the following mouse actions will display the following information.

Left Click + Shift – Displays the raw SLOSH value

Right Click – Displays the Inundation level

Right Click + Shift – Places the “house” icon at the position of your cursor



Please note:  Street Atlas data is only available for the US Gulf and East Coastal States as well as PR and the USVI.
