The inland wind model was developed by Mark DeMaria (NOAA/NWS/TPC) and John Kaplan (NOAA/AOML/HRD). The model applies a simple two parameter decay equation to the hurricane wind field at landfall to estimate the maximum sustained surface wind as a storm moves inland. This model can be used for operational forecasting of the maximum winds of landfalling tropical cyclones. It can also be used to estimate the maximum inland penetration of hurricane force winds (or any wind threshold) for a given initial storm intensity and forward storm motion. For further explanation refer to:

Kaplan, J., DeMaria, M., 1995: A Simple Empirical Model for Predicting the Decay of Tropical Cyclone Winds After Landfall. J. App. Meteor., 34, No. 11, 2499-2512.

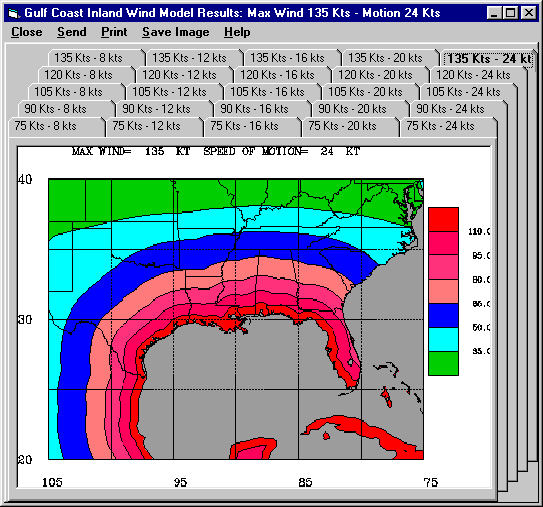

The graphics included in the HURRTRAK system will allow you to display examples of the Maximum Envelope Of Winds (MEOW). Three sets of graphics are shown, one for each of the regions: Gulf coast, East coast, and Northeast Coast. Click on the region desired and that set of graphics will be displayed.

While viewing the graphics, there are several menu options available.  They include:

Close   Send   Print   Save Image  Help

CLICK on any of the above commands to learn more

A special thanks to Mark DeMaria in allowing us to include this information in the system
