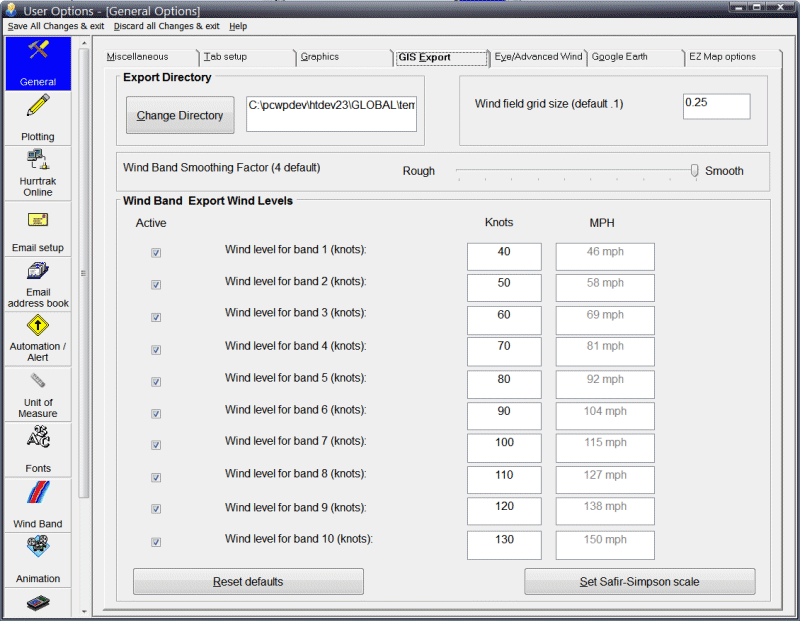

This factor determines how
much smoothing to apply to the exported wind band data and applies to both the
text data export and Shape File export (Advanced). If you choose a smoothing
factor that causes wind band lines to intersect, then this value should be reduced.
This value determines the density
of the exported Wind Field Shape file. The default value of .1 will generate
a point value at every .1 degree of latitude and longitude. This would result
in 100 points per 1 degree square. Hurrtrak Advanced only.
This option allows the user
to define the directory location where the GIS Export files will be
saved.
This option allows the user
to set the value of the 3-10
wind levels used in the GIS export function. The values must be entered in
knots.
General
Options (GIS
export)
This
option allows the user to setup user graphic parameters. Point and click on
the options shown above for a description of what they control.
